Audi A6/S6/RS6/allroad (4F/FB)

Model Audi A6/S6/RS6/allroad
Manufacturer Audi AG
Chassis (VIN) 4F & FB
Sales Type 4F2, 4F5 & 4FH
Platform AU56X / C6
Model Years 2005 > 2011
Model Years (US) 2005 > 2011
Predecessor Audi A6/S6/RS6/allroad (4B)
Successor Audi A6/S6/RS6/allroad (4G/FC)
Interface Hardware HEX-NET, HEX-V2, HEX+CAN

Info

General information about this model can be found in the corresponding Wikipedia entry.

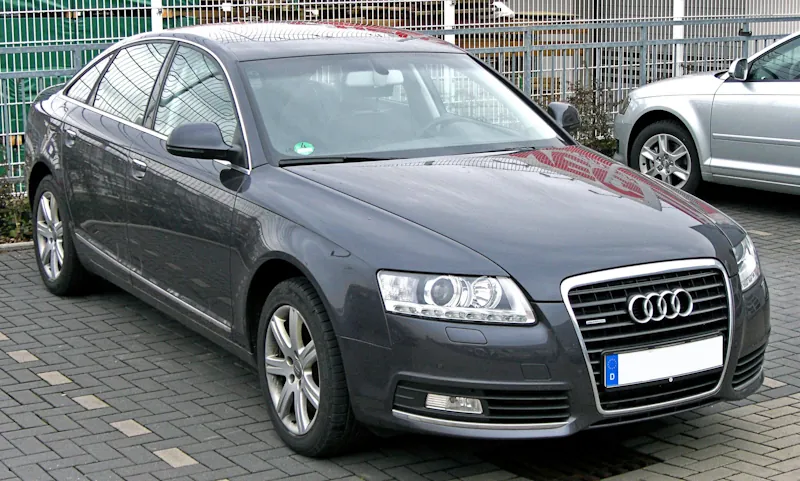

Audi A6/S6/RS6/allroad (4F/FB)
by M 93 CC0 1.0

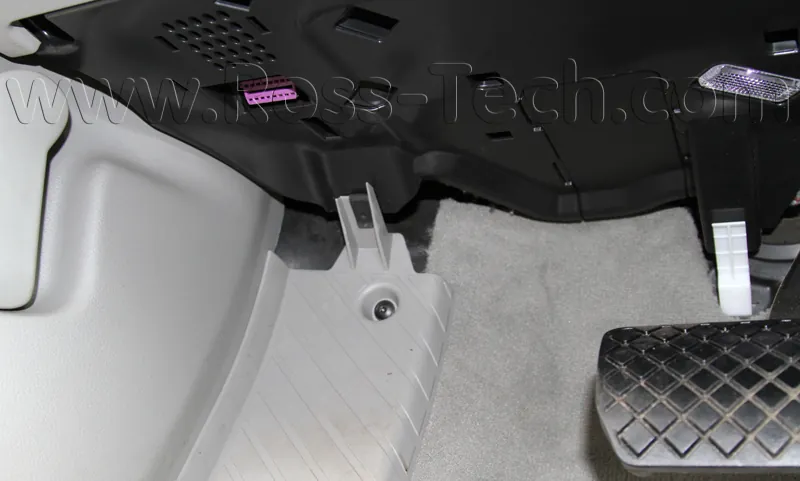

Audi A6/S6/RS6/allroad (4F/FB), DLC Location
The DLC is located in the Driver Footwell.

01 - Engine Electronics

J623 Immobilizer 4 (Download)

2.0l R4 TFSI (EA113)

02 - Transmission Electronics

J217

Continuously Variable Transmission (01J/VL300)

6-Speed Automatic Transmission (09E/AL600)

6-Speed Automatic Transmission (09L/AL420)

03 - Brake Electronics

J104

[05] - Access/Start Authorization

[06] - Seat Adjustment (Passenger)

[07] - Control Head Front

[08] - Heating/Air Conditioning

[09] - Central Electronics

[0E] - Media Player I

[0F] - Radio (Digital)

  • Sirius
    • Label File (4E0-910-593-SIR.LBL)
  • XM
    • Label File (4E0-910-593-XM.LBL)

[13] - Distance Regulation

[15] - Airbag

[16] - Steering Wheel Electronics

  • Coding
  • Label File (4F0-910-549.LBL)

[17] - Instrument Cluster

[18] - Auxiliary Heating

[19] - CAN-Gateway

  • Coding
  • Label File (4F0-910-468.LBL)
  • Label File (4L0-910-468.LBL)

Note: Facelift models don't have an actual 61-Battery Manager but instead have the battery management as a slave under the CAN-Gateway. In these cases, installation of a new battery would require the use of Long Adaptation under 19-CAN-Gateway. Follow the onscreen instructions to enter the Part Number, Vendor, and Serial Number all as one long new value.

[1E] - Media Player II

[28] - Heating/Air Conditioning (Rear)

[34] - Level Control

[36] - Seat Adjustment (Driver)

  • Label File

[37] - Navigation

[42] - Door Electronics Driver

  • Coding
  • Label File (4F0-910-793-42.LBL)

[46] - Comfort System

[47] - Sound System

[4F] - Central Electronics II

[52] - Door Electronics Passenger

  • Coding
  • Label File (4F0-910-793-52.LBL)

[53] - Parking Brake

[55] - Headlight Aim Control

[56] - Radio (Analog)

[57] - TV-Tuner

[61] - Battery Regulation

Note: Facelift models don't have an actual 61-Battery Manager but instead have the battery management as a slave under the CAN-Gateway. See the 19-CAN-Gateway section for details.

[62] - Door Electronics Rear Left

  • Coding
  • Label File (4F0-910-795.LBL)

[65] - Tire Pressure Monitoring

  • Coding
  • Label File (Basis, 4F0-910-273-BA.LBL)
  • Label File (High, 4F0-910-273-HI.LBL)

[67] - Voice Control

  • Label File (4E0-910-75x-67.LBL)

[69] - Trailer

  • Coding
  • Label File (4F0-910-383.LBL)

[6C] - Back-Up Camera

[6D] - Trunk Electronics

[72] - Door Electronics Rear Right

  • Coding
  • Label File (4F0-910-795.LBL)

[76] - Parking Aid

[77] - Telephone
